Metal Frame Fence Kits

FenceTrac Privacy & Fence Systems for Residential & Commercial Perimeter FencingSay goodbye to the ordinary wood fence… and say hello to a better fence system.

FenceTrac is a metal frame fence system that offers unparalleled strength and unlimited options to create the exact look you want.

Metal Posts & Frame + Any Infill = Beautiful Fence

With FenceTrac, you create your own fence style. Just insert any infill into the metal fence frame…

red cedar, corrugated metal, bamboo, welded wire, composite, vinyl, PVC, hardie board, metal screen, wood rails or anything else

…to create a unique fence that matches the aesthetics of your property. And, it lasts years longer than an ordinary wooden fence.

STYLES AVAILABLE

Standard FenceTrac

Standard FenceTrac Horizontal Planks

Standard metal frame system is designed to accommodate any infill material that can be secured within the channel.

FenceTrac + H-TRAC

FenceTrac With H-TRACS

H-TRAC incorporates additional vertical steel channels between posts to add more strength & a different look.

Simple & fast assembly. Infill materials slide into U-shaped rails. There is no need for hundreds of nails, screws, etc.

Typical installations require just (4) bolts per panel & self-tapping screws to attach Post Trac siderails to each post. (Hardware included)

Fence maintenance is a breeze. If a piece of infill material gets damaged, simply remove the top rail and slide the old piece out and the new piece in. When using standard FenceTrac, we recommend tongue & groove infill to provide the most strength and privacy.

VIEW MORE PHOTOS

DESIGN FEATURES

The standard fence kit includes: (1) Top Trac, (1) Bottom Trac, (2) Post Trac siderails (for post mount) and hardware to assemble metal components. Top & bottom rails are available in 72″ or 96″ lengths. Siderails are available to accommodate 48″, 72″ or 96″ panel heights.

FenceTrac’s patented U-channel metal fence frames are formed from galvanized 18 ga. steel for superior strength and durability. Bottom rails include weep holes to drain water. Trac mounting points include slotted holes for easy field alignment and assembly.

E-COAT (Black or Bronze)

Black or Bronze FenceTrac is subject to a multi-stage pre-treatment/wash (with zinc phosphate) followed by a duplex cathodic electrocoat system consisting of epoxy primer (which significantly increases corrosion protection) and an acrylic enamel topcoat, providing long-lasting protection in a weather-resistant industrial finish.

FenceTrac E-coat Metal Fence Coatings

Powder Coat (Other Colors)

Optional metal fence frame colors include WHITE, TAN, or GREEN. These colors are subject to a thermal stratification coating process, beginning with a multi-stage pre-treatment/wash, galvaneal coating and heating process, and a separate electrostatic spray application of polyurethane powder coat finish.

FenceTrac Powder Coat Metal Fence Coatings

INFILL OPTIONS

Designed to accommodate nearly any type of rigid infill, FenceTrac fence kits help you create a custom fence design that looks great with your property. We offer several standard infill choices, the most popular of which are shown below.

Red Cedar Wood

Western red cedar wood planks provide a classic look with the added strength of tongue & groove rigidity. They can be stained nearly any color.

Red Cedar Tongue & Groove Fence Pickets

Eco-friendly Composite

Low-maintenance composite fence planks made from wheat cellulose and recycled plastic are a popular choice, available in gray or light brown.

Composite Fence Planks For Privacy Fence

POSTS – GATES – HARDWARE

We offer complete metal frame fence kits including: metal fence posts, hinges, gates and other hardware needed to build your fence. We also provide custom gates built for your specific requirements.

Steel Fence Posts

Heavy-duty steel fence posts are available from 2″ to 4″ square in black, bronze, tan, white, or un-painted galvanized steel. Posts includes pyramid-shaped cap.

Painted Steel Fence Posts

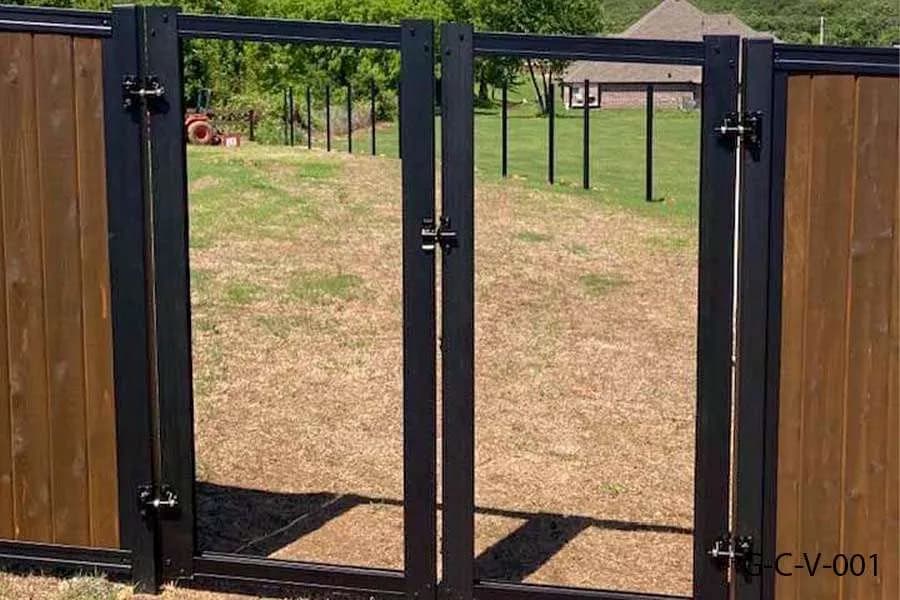

Gate Frames

Gate kits are available in standard heights ranging from 4′ to 8′ tall in standard widths ranging from 30″ to 72″ wide. Custom rolling gates available up to 30′ wide.

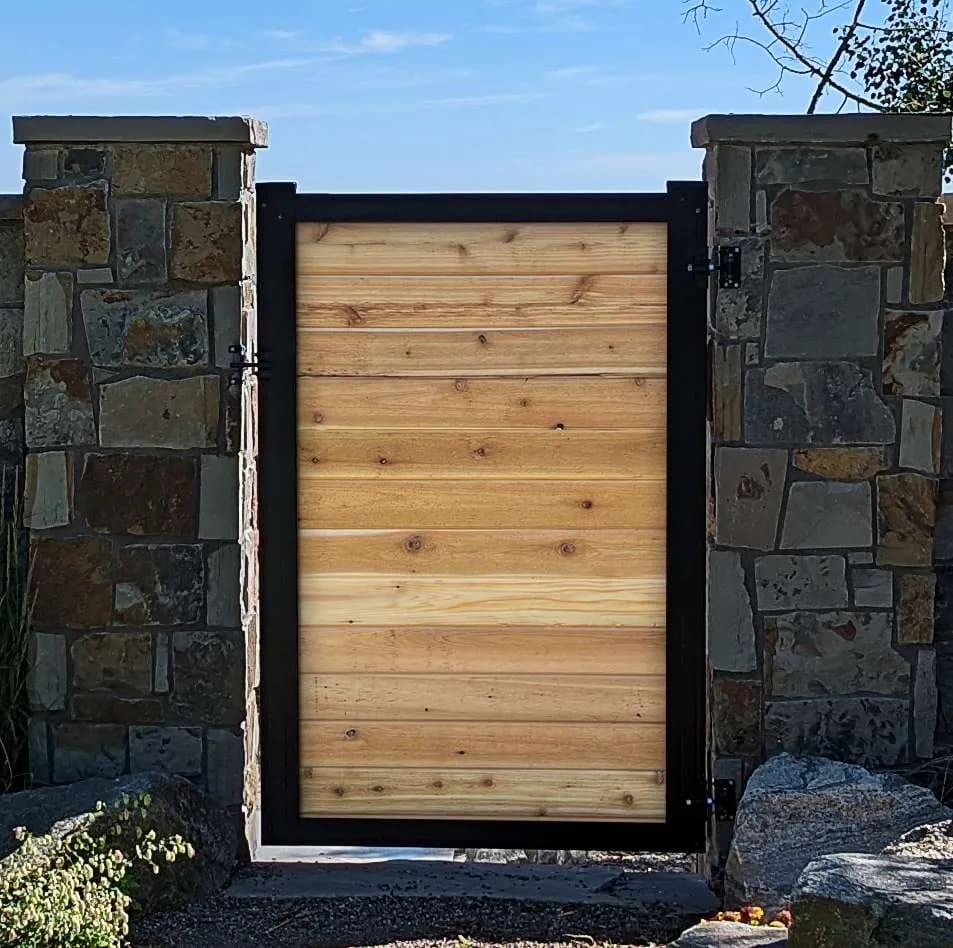

FenceTrac Metal & Wood Privacy Fence Gate

Gate Gallery

Hinge & Hardware Options

INSTALLATION INSTRUCTIONS

This drawing for reference only. Fence kit shown with OPTIONAL H-Trac vertical channels.

FenceTrac Installation Instructions

Step-by-Step Instructions

ONE – Set Posts using specified length from Inside-to-Inside posts.

  • Top/Bottom Tracs come in 2 standard lengths: 72″ or 96″

TWO – Place Bottom Trac (with drain holes) on the ground between posts.

THREE – Attach Post Tracs to the post by using supplied self-drilling screws.

  • Insert Post Tracs into the Bottom Trac partially before drilling them into the Post. This helps installation of the Bottom Trac when it is close to the ground. Clearance is typically too tight to slide Bottom Trac in place after Post Tracs are attached.

FOUR – Raise the Bottom Trac up to the Post Trac and align the slotted holes.

  • Insert the bolt and nut into the Bottom Trac and hand tighten.

FIVE – Before inserting Infill Material, notch the first and last pieces to clear the bolts and nuts.

  • Recommend at least 1-1/2″ x 1-1/2″ of material be notched out.

SIX – Insert first Infill into the Bottom Trac. Continue sliding Infill into place until you reach the last piece.

  • If using H-Tracs, install using the same method as Infill Material.

SEVEN – If using Tension Springs, install in Post Tracs with supplied hardware.

EIGHT – Insert the final piece of Infill by sliding it from the top into the Post Trac (and if applicable H-Trac).

  • The final Infill piece should also be notched before inserting. In some situations, the Infill itself may need to be cut down in width.

NINE – Place Top Trac over the Post Tracs / H-Tracs / Infill Material. Insert bolts and nuts and then tighten ALL exposed hardware for finish.
